AGS1V – INDIVIDUAL VERTICAL CABLE TRELLIS SYSTEM

AGS1-V

System No Orientation HS S Suitable for
    mm mm plant type
AGS1V-200
Vertical 200 80 Slow Growing Vines
AGS1V-400
Vertical 400 80 Slow Growing Vines
AGS1V-600
Vertical 600 120 Vigorous Vines
AGS1V-800
Vertical 800 120 Vigorous Vines
AGS1V-CUST
Vertical Custom Custom
        *S= Distance off wall.


Simple and straight is the theme with our Single Cable Trellis systems. Cables ARE oriented in a vertical arrangement and spaced to suit overall look and/or plant type selected. Single Cable Trellis systems are a great way to draw vines ‘up’ a vertical space style trellises. Stylish cable fittings and well resolved off stands make the AGS1V the perfect solution for applying a straight line cable trellis to any new or existing wall.

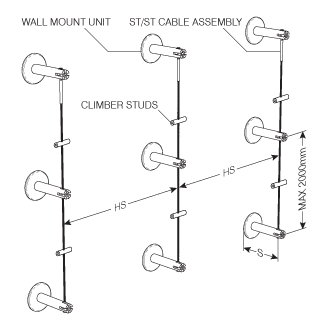

HOW TO SPECIFY – Complete the required system number & insert this text into your specification document Ronstan AGS1x-xxx Single Cable Trellis system. Consists of ABS1-19M04 4mm dia cables with 7×7 construction. Affixes to stainless steel offstands TYP 80, 120 or 160mm long depending on System No selected. Cable spacing to 200, 400, 600 or 800mm depending on System No selected. Max spacing for intermediate offstands (along cable) is 1500mm. Offstands use M8 threaded fixing 100mm long, typically chemset to wall. Please refer to the component overview for alternate fixings to suit non-concrete wall types.

Contact Ronstan on 03 8586 2000 for pricing, installation and further details.

OTHER COMMENTS/CONSIDERATIONS For large spans or plant loads a heavy duty end stand is required. Horizontal systems can sag under plant weight and consideration should always be given to how accessible and climbable your installation is. End stands can be replaced by posts/frames/support as required. Climber studs can be added as an option to help assist with plant climbing (I924-0400).
