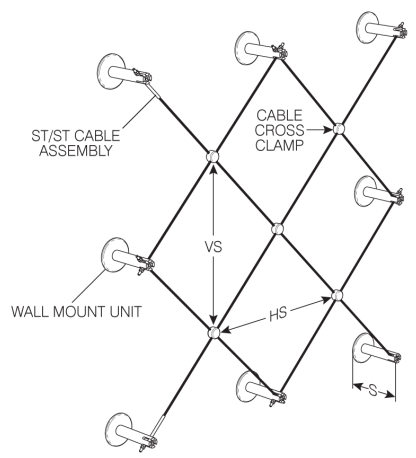

AGS3C – DIAGONAL CABLE-CABLE GRID STYLE TRILLIS SYSTEM – STAINLESS STEEL

System No HS VS S Suitable for
  mm mm mm plant type
AGS3C-200
200 200 80 Slow Growing Vines and Tendril Climbers
AGS3C-400
400 400 80 Slow Growing Vines and Tendril Climbers
AGS3C-600
600 600 120 Fast Growing Vines and Tendril Climbers
AGS3C-800
800 800 160 Fast Growing Vines and Tendril Climbers
AGS3C-CUST
Custom Custom Custom
        *S= Distance off wall.


Ronstan Diagonal Green Trellises provide a refreshing alternative to standard green wall trellising. Generally better suited to high walls these trellises promote good vertical plant growth while providing a stylish background feature on their own. The elongated diamonds of the stainless steel cable and mesh alternatives provides a good value-to-coverage ratio and their off-vertical arrangement encourages plants to spread faster than other arrangements. Our AGS3 systems offers three different configurations;
off stands with tensioned cables and plastic cross clamps, off stands at all intersections with plain cable (no tensioners) and large elongated mesh bordered by cables and
off stands. Each style can provide a different look and suit different budgets based on overall wall size.
 HOW TO SPECIFY – Complete the required system number & insert this text into your specification document Ronstan AGS3x-xxx Diagonal Style Trellis system. Uses off stands with tensioned cables and plastic cross clamps, off stands at all intersections with plain cable (no tensioners) or large elongated mesh bordered by cables and off stands depending on System No selected. Diamond intersections restrained by UV stable plastic cross clamp, greencable wallmount or copper mesh ferrule depending on System No selected. Affixes to 120mm long offstands with M8 threaded fixing 100mm long, typically chemset to wall. Please refer to the component overview for alternate fixings to suit non-concrete wall types. Load back to structure to be determined by engineer.

Contact Ronstan on 03 8586 2000 for pricing, installation and further details.

OTHER COMMENTS/CONSIDERATIONS End stands can be replaced by posts/frames/support as required. AGS3 systems tend to be large span and may require engineering analysis to determine reaction loads to structure. End stands can be replaced by posts/frames/support as required. Diamond angle can be modified to suit special applications as required. AGS3C-xxx uses I920-0400 grey plastic cross clamps included as standard. I858-0400 stainless steel cross clamps can be used instead if desired.
