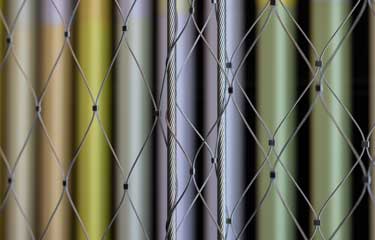

CXL Carl Stahl X-Tend®– 316 Stainless Steel Mesh
| Wire | Wire | Diamond Dimension | Weight | Max diam. between ferrules | Porosity | ||
| Mesh Type | Diam. | Construction | MW | MH | ∅ Diam. | ||
| mm | mm | mm | kg/m2 | mm | % | ||
| CXL1.5-MW18 | 1.5 | 7×19 | 18 | 33.0 | 2.12 | 11 | 74 |
| CXL1.5-MW20 | 1.5 | 7×19 | 20 | 36.2 | 1.96 | 13 | 77 |
| CXL1.5-MW22 | 1.5 | 7×19 | 22 | 39.5 | 1.85 | 15 | 80 |
| CXL1.5-MW25 | 1.5 | 7×7 | 25 | 44.7 | 1.44 | 18 | 83 |
| CXL1.5-MW30 | 1.5 | 7×7 | 30 | 53.5 | 1.12 | 23 | 86 |
| CXL1.5-MW35 | 1.5 | 7×7 | 35 | 61.9 | 0.91 | 28 | 88 |
| CXL1.5-MW40 | 1.5 | 7×7 | 40 | 70.5 | 0.76 | 33 | 90 |
| CXL1.5-MW50 | 1.5 | 7×7 | 50 | 88.1 | 0.57 | 43 | 92 |
| CXL1.5-MW60 | 1.5 | 7×7 | 60 | 105.2 | 0.46 | 53 | 94 |
| CXL1.5-MW70 | 1.5 | 7×7 | 70 | 123.3 | 0.38 | 63 | 95 |
| CXL1.5-MW80 | 1.5 | 7×7 | 80 | 139.3 | 0.32 | 73 | 95 |
| CXL1.5-MW100 | 1.5 | 7×7 | 100 | 174.6 | 0.25 | 93 | 96 |
| CXL1.5-MW120 | 1.5 | 7×7 | 120 | 209.3 | 0.20 | 113 | 97 |
| CXL1.5-MW140 | 1.5 | 7×7 | 140 | 243.9 | 0.17 | 133 | 97 |
| CXL1.5-MW160 | 1.5 | 7×7 | 160 | 278.5 | 0.15 | 153 | 98 |
| CXL1.5-MW180 | 1.5 | 7×7 | 180 | 313.2 | 0.13 | 173 | 98 |
| CXL1.5-MW200 | 1.5 | 7×7 | 200 | 347.8 | 0.12 | 193 | 98 |
| Note: Different opening angle can influence the values in the above table | |||||||
| Wire | Wire | Diamond Dimension | Weight | Max diam. between ferrules | Porosity | ||
| Mesh Type | Diam. | Construction | MW | MH | ∅ Diam. | ||
| mm | mm | mm | kg/m2 | mm | % | ||
| CXL2.0-MW30 | 2.0 | 7×19 | 30 | 53.0 | 2.07 | 22 | 81 |
| CXL2.0-MW35 | 2.0 | 7×19 | 35 | 62.0 | 1.68 | 27 | 84 |
| CXL2.0-MW40 | 2.0 | 7×19 | 40 | 71.1 | 1.41 | 32 | 87 |
| CXL2.0-MW50 | 2.0 | 7×7 | 50 | 88.1 | 1.00 | 42 | 90 |
| CXL2.0-MW60 | 2.0 | 7×7 | 60 | 105.6 | 0.79 | 52 | 91 |
| CXL2.0-MW70 | 2.0 | 7×7 | 70 | 122.4 | 0.66 | 62 | 93 |
| CXL2.0-MW80 | 2.0 | 7×7 | 80 | 139.6 | 0.56 | 72 | 94 |
| CXL2.0-MW100 | 2.0 | 7×7 | 100 | 174.3 | 0.43 | 92 | 95 |
| CXL2.0-MW120 | 2.0 | 7×7 | 120 | 209.0 | 0.35 | 112 | 96 |
| CXL2.0-MW140 | 2.0 | 7×7 | 140 | 243.7 | 0.29 | 132 | 97 |
| CXL2.0-MW160 | 2.0 | 7×7 | 160 | 278.3 | 0.25 | 152 | 97 |
| CXL2.0-MW180 | 2.0 | 7×7 | 180 | 312.9 | 0.22 | 172 | 97 |
| CXL2.0-MW200 | 2.0 | 7×7 | 200 | 347.6 | 0.20 | 192 | 98 |
| CXL2.0-MW300 | 2.0 | 7×7 | 300 | 520.8 | 0.13 | 292 | 98 |
| CXL2.0-MW400 | 2.0 | 7×7 | 400 | 694.0 | 0.10 | 392 | 99 |
| Note: Different opening angle can influence the values in the above table | |||||||
| Wire | Wire | Diamond Dimension | Weight | Max diam. between ferrules | Porosity | ||
| Mesh Type | Diam. | Construction | MW | MH | ∅ Diam. | ||
| mm | mm | mm | kg/m2 | mm | % | ||
| CXL3.0-MW40 | 3.0 | 7×19 | 40 | 71.4 | 3.37 | 27 | 79 |
| CXL3.0-MW50 | 3.0 | 7×19 | 50 | 89.6 | 2.48 | 37 | 84 |
| CXL3.0-MW60 | 3.0 | 7×19 | 60 | 105.9 | 1.94 | 47 | 87 |
| CXL3.0-MW70 | 3.0 | 7×19 | 70 | 124.1 | 1.59 | 57 | 89 |
| CXL3.0-MW80 | 3.0 | 7×19 | 80 | 140.0 | 1.34 | 67 | 90 |
| CXL3.0-MW100 | 3.0 | 7×19 | 100 | 175.0 | 1.01 | 87 | 92 |
| CXL3.0-MW120 | 3.0 | 7×19 | 120 | 210.8 | 0.81 | 107 | 94 |
| CXL3.0-MW140 | 3.0 | 7×19 | 140 | 245.5 | 0.68 | 127 | 95 |
| CXL3.0-MW160 | 3.0 | 7×19 | 160 | 280.1 | 0.58 | 147 | 95 |
| CXL3.0-MW180 | 3.0 | 7×19 | 180 | 314.7 | 0.51 | 167 | 96 |
| CXL3.0-MW200 | 3.0 | 7×19 | 200 | 349.4 | 0.45 | 187 | 96 |
| CXL3.0-MW300 | 3.0 | 7×19 | 300 | 522.6 | 0.28 | 287 | 98 |
| CXL3.0-MW400 | 3.0 | 7×19 | 400 | 695.8 | 0.21 | 387 | 98 |
| Note: Different opening angle can influence the values in the above table | |||||||
Border Options
CXL micro – Patent Registered
| Cable Material 1.4401_AISI316 | |||
| ∅ (mm) | 1.5 | 2.0 | 3.0 |
| Construction | 7×7 | 7×7 | 7×19 |
| F (kN) | 1.86 | 2.88 | 5.12 |
| S (N/mm2) | 1770 | 1770 | 1570 |
| Ferrule Material 1.4401_AISI316 | |||
| Size (mm) L x W x H | 5.4 x 6.6 x 2.1 | 6.6 x 8.1 x 2.5 | 8.0 x 12.7 x 3.7 |
