Cables give balustrades and railings a sense of elegance, space and style. With careful planning and design, they have the ability to totally transform the look. Their clean and simple lines create a sleek and modern aesthetic, while offering uninterrupted views. They’re contemporary, low-maintenance and surprisingly easy and fast to install. Ronstan has been setting the standard for cable applications in balustrades and railings since 1988.
Description
A simple, clean and economical cable
Lengths/Span
Typically suits straight runs up to
ABS1 Type A – 10m (32ft) maximum length.
ABS1 Type B – 5m (16ft) maximum length.
Cable Diameters
3mm, 4mm, 5mm,
1/8in, 5/32in, 3/16in, 1/4in
Specific Features
- An in-line system of minimal visual impact with no bulky turnbuckles to impede views.
- Neat and simple architectural connections for the ultimate clean look.

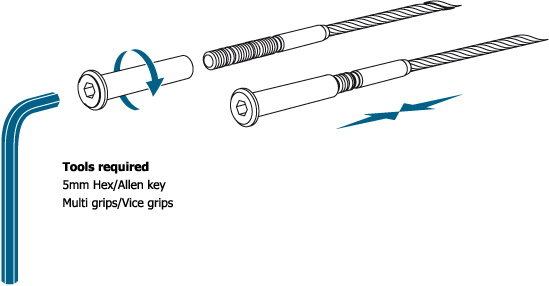

- Easy tensioning from the outside of the post allows fast installation and minimal time on site.
- The system is perfect for both vertical and horizontal configurations.
- Quality Grade 316 stainless steel construction suitable for harsh environments and long service life.
Applications
- Perfect for any situation where the goal is reduced visual impact.
- Ideal for domestic, commercial and public applications where access to the outside of the end posts is possible.
- Suitable for use with timber or metal uprights.
- Short runs in vertical or horizontal applications.
- Stair situations using angled washers.
Description
The versatile cable with a bold technical style
Lengths/Span
Typically suits straight runs up to
ABS2 Type A – 10m (32ft) maximum length.
ABS2 Type B – 5m (16ft) maximum length.
Cable Diameters
3mm, 4mm, 5mm,
1/8in, 5/32in, 3/16in, 1/4in
Specific Features

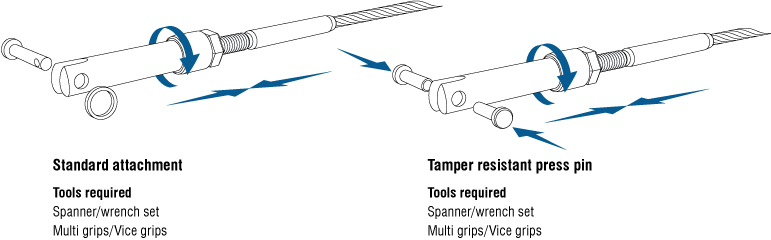

- ABS2 utilizes the unique Microloc™ adjuster, a bold contemporary interpretation of the dependable and reliable traditional turnbuckle.
- The articulated fork end and wide range of mating connections are perfect for both stair and horizontal balustrade/railing applications.
- Versatile connection options to suit timber or metal posts.
- Simply tensioned with a standard spanner or wrench – no special tools.
- Unique tamper resistant “press” pin option is available to order to minimise theft or damage. (below)
- Quality Grade 316 stainless steel construction for harsh environments and long service life.
Applications
- Suitable for horizontal, vertical and stair situations.
- Ideal for domestic and commercial applications.
- Where architectural aesthetics demand a cable with bold technical fittings.
